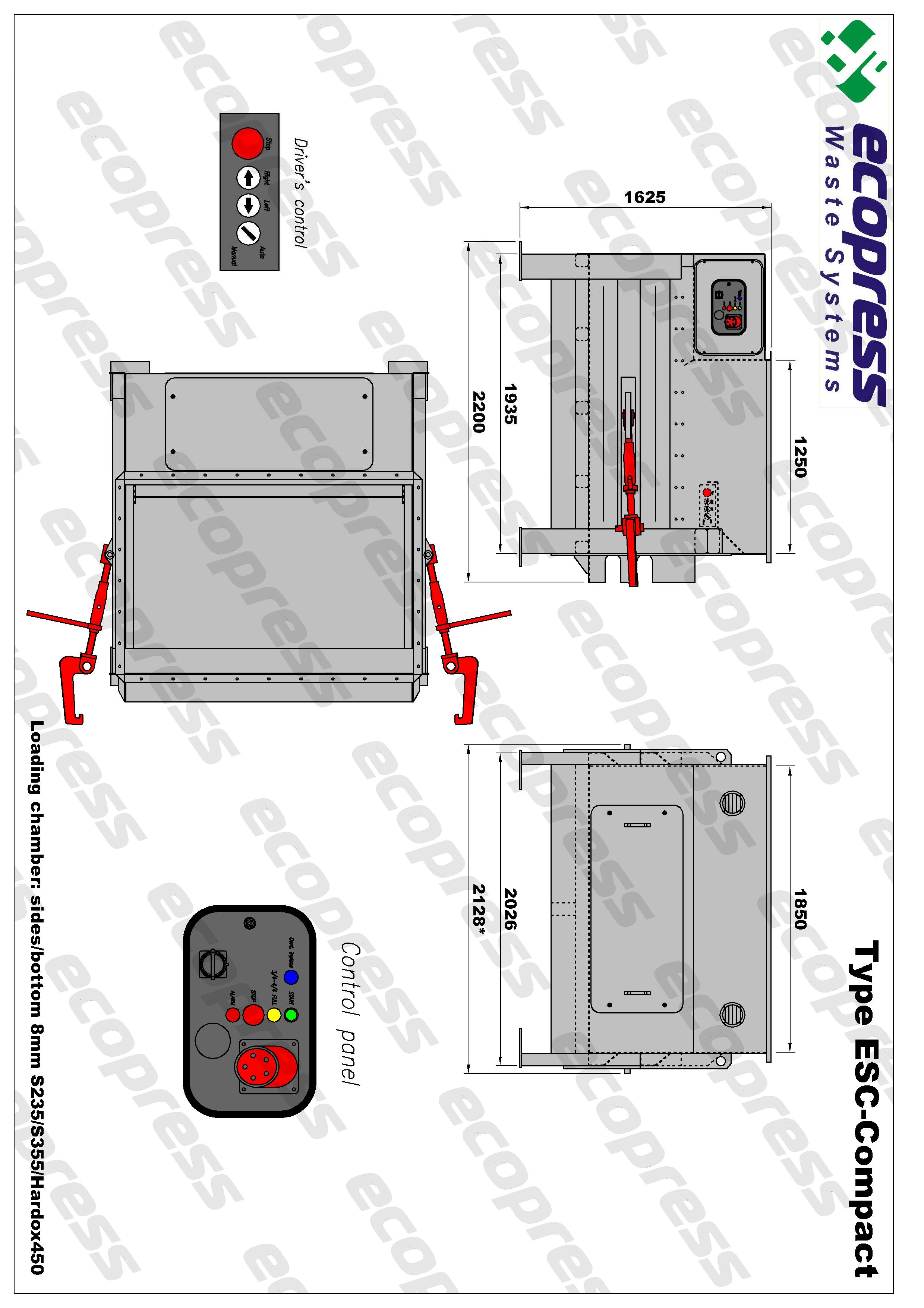

ESC COMPACT





Model ESC COMPACT

ECOPRESS Stationary compactor is designed for pressing cardboard, foil and dry or semi-dry municipal waste, reduces the volume of stored waste and cost of its transportation. The compression ratio is from 1:3 to 1:10 for different types of waste providing the payback of the equipment. Unlike mobile compactor where operation process is suspended for container emptying time, stationary compactor system allows organizing continuous process of waste pressing. Suspension of stationary compactor operation process occurs only during the change of containers. Besides, compared to mobile compactor, larger volume of stationary compactor replaceable containers allows to load and transport larger volume of waste materials.


ESC COMPACT is created to reduce the smaller sized waste and materials. Due to shorter distance of compaction plate movement this machine is highly effective in fast compaction process. Maximum transport capacity of compaction container is 44m3 in relation to a limited length of hook lift collection vehicles. It is suitable for operation in all weather conditions at temperatures from -50°C to +50°C with low noise level. The compaction system is managed by pressure sensors without any mechanical sensors to avoid possible malfunction during operation. Machine is equipped with protective sensors for oil level and overheating. Build in telemetry module supports online connection 24/7 and signals by email and SMS as well as re-program or service requirement notice.


ECOPRESS compactors are available in various different models of loading options, connection to object by stationary hopper, side or front mounted Wheelie Bin Tippers with or without automatic lid opener, front or side hinged backdoor and double end lift up option.


ECOPRESS compactors conform to Health & Safety and CE requirements of EU Directives 2006/42/EC, 89/392EEC, 91/368EEC, 93/44EEC, 93/68EEC on the safety of machinery and equipment and German accident prevention regulations.


Compaction container capacity is from 20 to 44 m3.


TECHNICAL INFORMATION:

Pressing force, tons
28,2 / 39,3
Pressure, bar
210 / 280
Electric motor, kW
5,5 / 7,5
Operating Voltage
230V / 400V / 16-32A
Press plate size, L x W, mm
1850 x 500
Loading chamber volume, m3
2,77
Loading chamber size - top, L x W, mm
1850х1120
Loading chamber size - bottom, L x W, mm
1850х1020
Loading chamber height, mm
1510
Output capacity per cycle, m3
0,94
Output capacity per hour, m3/h
77 / 82
Compacting cycle, sec
43 / 40
Container volume, m3
20 - 44
Cardboard payload, tons
up to 5 / 7,5
Incineration waste payload, tons
up to 8 / 15
FEATURES:

  • For hooklift/roll-off tippers
  • Container 80 and 100% full light
  • Ram with plastic fine scraper at the bottom (ideal for scraps of paper)
  • Rubber seal on cylinder chamber
  • Pendulous retaining claws prevent the waste from springing back
  • Problem-free emptying supported by three-sided conical container body or floating roof
  • Discharge door with ratchet closure, hinges on the side
  • Cylinder mounted in rotatable eyelets
  • Maintenance friendly electrical switch cabinet and hydraulic unit are easily accessible from the side and from above
  • Electronic safety controller is easily expandable for many additional functions
  • Container sandblasted and painted as per EN ISO 12944 C3M
  • End position of the ram “open” or “closed”
  • Cable remote control
  • Pendulous steel scraper in front of the ram
  • Low feed opening 1320mm for comfortable loading
  • Cover over filling opening optionally
  • Discharge door with seal
  • Maintenance hatch with safety limit switch
  • Additional integrated or portable container tipping mechanisms
  • Fill level, error or service requirement notification via GSM
  • Bin Lifting device integrated or stationary with own power pack
  • 230/380V switch box panel
  • Timer to start / stop compaction
  • Automatic start with photo sensor
  • Oil heating system
  • Oil cooling system
  • Steel lid with 2 gas cylinders
  • Aluminum lid with 2 gas cylinders
  • High sides of loading chamber
  • High sides of loading chamber with side loading hatches
  • Waste feeding channel
  • Guiding rails, 3m or 6m
